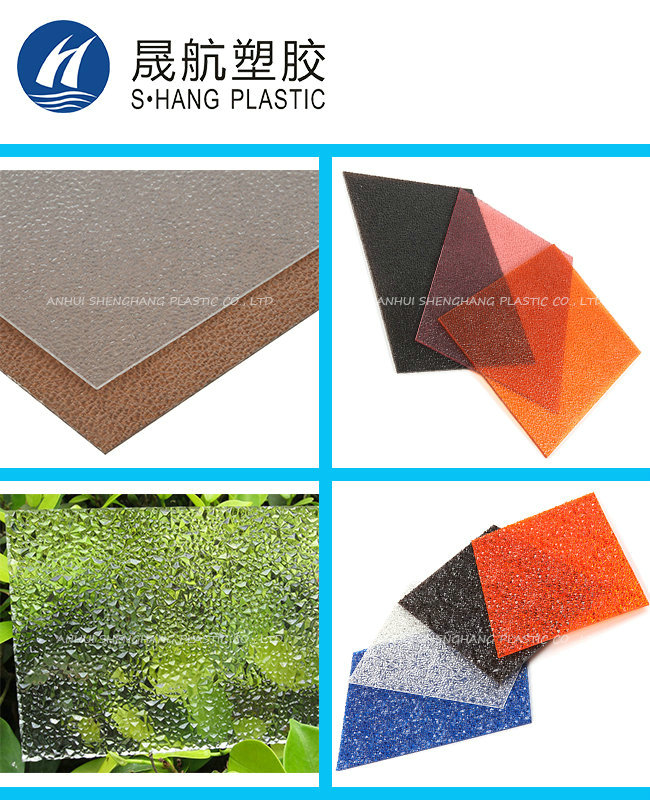

Diamond PC Sheet 06 - Orange+Clear

Surface of Diamond Polycarbonate Embossed Sheet enhance the toughness, and it also reflect glare which is direct irradiation on the sheet, disperse reflected light, and reduce light pollution. Surface looks graceful appearance and it can resist scratching. It is particularly suitable for various kinds' designs.

SPECIFICATION
1) Thickness: 1.6mm-10mm(Mainly 2mm, 3mm, 4mm);
2) Width: Max. 2100mm(1220/1560/1820/2100mm);
3) Length: any dimensions (5800mm & 3000mm to be loaded into the container)
4) Color: clear, lake blue, green, bronze, orange, white, yellow, red and so on.

5) Dimensions and Colors both can be customized.
6) One side covered with PE protective film.The Printing on PE film can be customized.

ItemStandard Width
(mm)
Thickness
(mm)
Weight
(kg/m2)
Min Curving Radius
(mm)
General ColorRemark
PC Embossed Sheet1220
1560
1820
2100
2.02.4350Clear
Opal
Blue
Green
Bronze
Orange
1.5mm-3.0mm, 30m/roll;

3.6mm-4.5mm, 18m/roll;

≥5mm packed as sheet.
2.53.0438
3.03.6525
3.54.2613
4.04.8700
5.06875
6.07.21050
NOTE: Special colors and specifications can be customized.



FEATURE
1)Low transmittance: around 12%,can block the sun effectively
2) Impact resistance: 250-300 times that of ordinary glass and 20-30 times that of acrylic sheeting
3) Weather resistance: -40°C ~+120°C
4) Flame resistance: rated class B1
5) Light weight and easy installation: 1/2 of glass of the same thickness
6) Ultraviolet resistance: with UV protective layer
7) Sound and heat proof
8) Fine plasticity, either cold bending or hot bending
9) Anti-fog


APPLICATION
1) Unusual decorations, corridors and pavilions in gardens and recreational and rest places;
2) Interior and exterior decorations of commercial buildings, and curtain walls of the modern urban buildings;
3) The transparent containers, front wind shields of motorcycles, airplanes, trains, ships, vehicles, motor boats, sub marines;
4) Telephone booths, street name plates and sign boards;
5) Instrument and war industries - windscreens, army shields
6) Walls, roofs, windows, screens and other high quality indoor decoration materials;
7) Sound insulation shields on express ways and city overhead highways;
8) Agriculture greenhouses and sheds;
